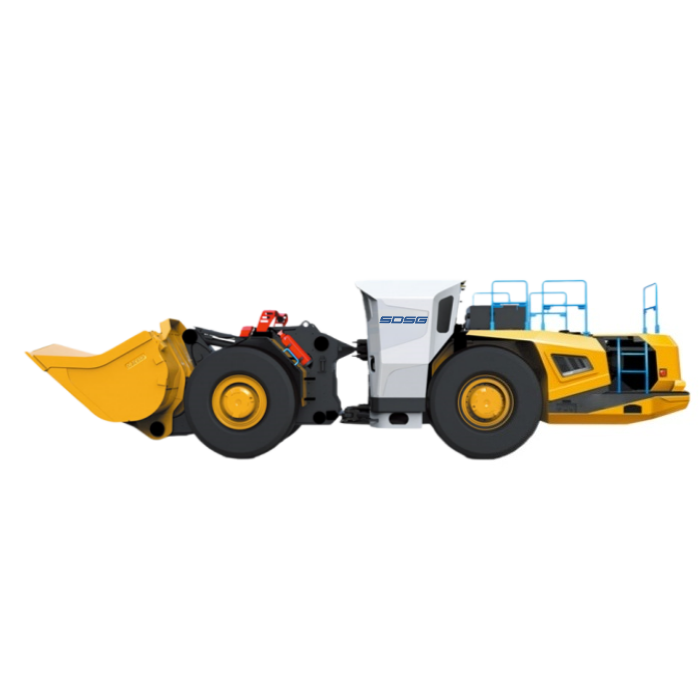

Low Emission & Eco-friendly:High-standard China IV emission engine, effectively reducing exhaust pollution in underground mine working faces and roadways.
High Reliability:Imported engine matched with DANA axles and transmission, low failure rate. Working devices adopt high-strength steel plates with high safety factor and long service life.
Personnel Safety:FOPS/ROPS certified cab with three emergency exits, improving operator safety.
High Efficiency & Energy Saving:Load-sensing variable hydraulic system supplies pressure and flow on demand, delivering higher efficiency and lower fuel consumption.
Easy Operation:Travel and work functions are integrated into two electric control joysticks for fast and precise operation.
Comfortable Driving:Cab mounted with multi-directional shock absorbers and equipped with air-suspension seat for excellent driving experience.
High Operating Efficiency:Optimized working mechanism effectively increases dumping height for higher productivity.
PARAMETERS
Item
|
Unit
|
Parameter
|
Rated bucket capacity
|
m³
|
4/4.5
|
Rated loading capacity
|
t
|
10
|
Maximum breakout force
|
kN
|
190
|
Maximum traction force
|
kN
|
230
|
Engine
|
-
|
TAD1150VE / TAD883VE
|
Emission standard
|
-
|
EU Ⅲ / EU Ⅴ
|
Ratoed power
|
kw
|
235
|
Maximum traveling speed
|
km/h
|
24.5
|
Minimum turning radius
|
inner side/outer side
|
3270 / 6480
|
Transport dimensions
|
L×W×H
|
9930×2580×2380
|
Total weight
|
t
|
29.6±0.5
|
