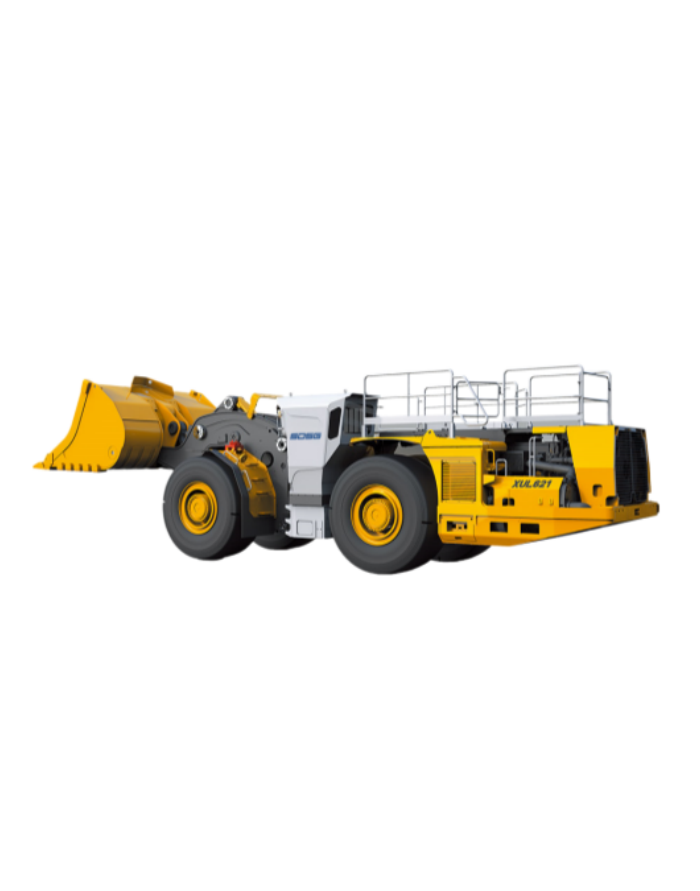

Low Pollution & Eco-friendly
High-standard China IV emission engine effectively reduces exhaust pollution in underground mine working faces and tunnels.
High Reliability
Imported engine matched with DANA axles and transmission ensures low failure rate. The working equipment uses high-strength steel plates with a high safety factor and longer service life.
Operator Safety
FOPS/ROPS certified cab equipped with three emergency exits to enhance operator safety.
High Efficiency & Energy Saving
Equipped with load-sensing variable hydraulic system that supplies pressure and flow on demand, delivering higher efficiency and lower fuel consumption.
Easy Operation
Travel and working functions are integrated into two electric control joysticks for fast and precise operation.
Comfortable Driving
Cab is mounted with multi-directional dampers and equipped with an air suspension seat for an improved driving experience.
PARAMETERS
Item
|
Unit
|
Parameter
|
Rated bucket capacity
|
m³
|
10
|
Rated loading capacity
|
t
|
21
|
Maximum breakout force
|
kN
|
354
|
Maximum traction force
|
kN
|
431
|
Engine
|
-
|
TAD1384VE
|
Emission standard
|
-
|
EU Ⅴ
|
Ratoed power
|
kw
|
375
|
Maximum traveling speed
|
km/h
|
23.5
|
Minimum turning radius
|
inner side/outer side
|
3750 / 7990
|
Transport dimensions
|
L×W×H
|
12520×3380×3000
|
Total weight
|
t
|
60±0.5
|
