Category: Underground Loader

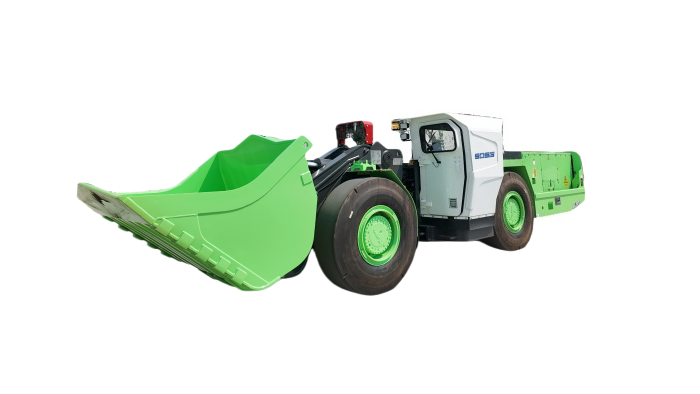

Underground Loader XUL307E

Rated load: 3.5³

Operating weight: 24500±500KG

Rated power: 120*2+105

Contact

Characteristics

he XUL307E underground lithium battery LHD is our first carefully crafted pure electric underground loader. It is designed for loading, hauling and dumping operations in mine roadways and other small tunnels under non-explosive environments. Featuring zero exhaust emissions, the XUL307E is energy-saving, environmentally friendly, safe and efficient, with annual operating costs reduced by 50% compared to diesel-powered loaders of the same tonnage.

Product Specifications

  • High reliability: No gearbox, reducing the overall machine failure rate caused by gearbox problems.
  • High safety: Mining-certified safe batteries, operator presence system, ROPS & FOPS certified cab, neutral brake after 3 seconds, dual-circuit braking system and other functions.
  • Energy saving: Adopts multi-mode motor control (Eco, Standard and Power modes), realizing multi-level regenerative braking.
  • High efficiency: Features fast battery swap; higher battery capacity than competitors; thickened hydraulic cylinders; multiple motor modes. Performance in uphill speed under heavy load, traction during combined loading, availability and construction efficiency is superior to diesel loaders and other peer products.
  • Long service life: Motor-assisted braking, bucket lip assembly (optional).
  • Information configuration: Fault diagnosis and analysis, production data statistics (optional).
  • Intelligent configuration: Remote control (optional), automatic driving and dumping (optional).
  • Low operating cost: No engine filter or diesel fuel consumption compared with diesel loaders, reducing annual operating cost by 50%.
  • PARAMETERS
    Item
    		 Unit
    		 Parameter
    Transport dimensions
    		 mm
    		 9480×2328×2330
    Empty Operating Weight
    		 kg 24500±500
    Motor Power
    		 KW 120*2+105
    Battery Type
    		 / Mining Battery
    Battery Capacity
    		 kWh
    		 286/271
    Rated Bucket Capacity
    		 m³
    		 3.5
    Rated Payload
    		 t 7
    Maximum Breakout Force
    		 kN 130
    Maximum Tractive Force
    		 KN 215
    Maximum Lift Capacity
    		 KN 11
    Travel Speed
    		 km/h
    		 24.5
    Maximum Dumping Height
    		 mm 1938
    Climbing Speed (25% grade)
    		 km/h
    		 7.5
    Minimum Turning Radius
    		 mm 3075(2858)/5868
