Rated load: 2³
Operating weight: 5t
Rated power: /

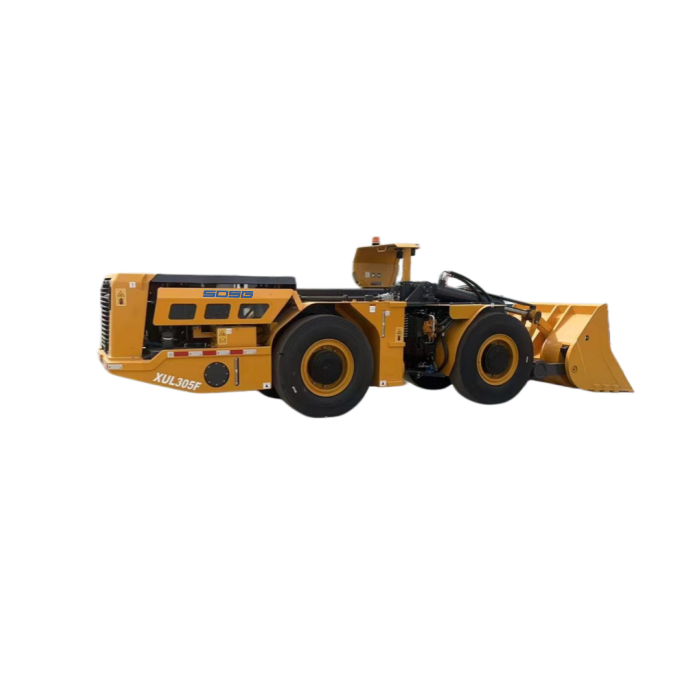

The XUL305F underground diesel LHD is equipped with a China IV emission engine that meets mining safety certification requirements. As a carefully developed 2m³ class underground diesel loader, it is designed for loading, hauling and dumping operations in mine roadways and other small tunnels under non-explosive environments.
Easy maintenance: Integrated arrangement of engine filters for convenient maintenance.
PARAMETERS
| Item | Unit | Parameter |
|
Rated Bucket Capacity |
m³ |
2 |
|
Rated loading capacity |
t | 5 |
|
Maximum breakout force |
KN | 103 |
|
Maximum traction force |
KN | 140 |
|
Travel Speed (Forward/Reverse) |
km/h |
4.9/7.9/16.2/19.5 |
|
Transport dimensions |
m |
7.48×1.81×2.01(2.16) |
|
Minimum Turning Radius |
mm |
2640/4970 |
|
Operating Weight |
t |
14.2±0.5 |
|
Engine Brand/Model |
/ |
Cummins B5.9CS4 |
|
Emission standard |
/ |
China IV |
|
Wheelbase |
mm | 2540 |
|
Frame Steering Angle |
° |
40 |
|
Frame Oscillation Angle |
° |
8 |
|
Maximum Dumping Height of Working Equipment |
mm | 1755 |
|
Minimum Dumping Distance of Working Equipment |
mm | 885 |
|
Maximum Lifting Capacity of Working Equipment |
KN | 57 |
|
Total time of three movements |
S | 14.7 |
|
