Category: Underground Loader

Underground Loader ZL40E

Rated load: 1.7m³

Operating weight: 11400kg

Rated power: 92KW

Characteristics

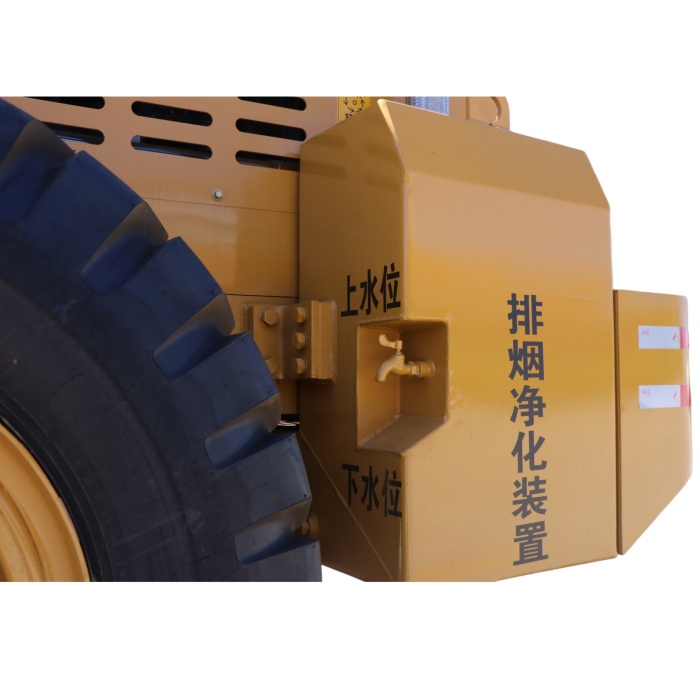

1.Adopting Guangxi Yuchai high-pressure common rail diesel engine, it has strong power and reliable performance; 2.Adopting the Hangzhou Gear Integrated Dual Transformer Assembly,the structure is compact,the reliability is high,and the traction force is strong 3.Large pitch articulated frame for more stable operation and walking; 4.The large braking system adopts a wet brake bridge,which requires less maintenance and has a longer service life. 5.The electrical system has undergone waterproof and moisture-proof design to adapt to the humid working conditions underground; 6.Configure smoke exhaust purification device,environmentally friendly and green;.Specially designed ore bucket with long service life; 7.Configure transmission protection plate and drive axle brake embedded cover; 8.The high-strength protective shed,hood, and mudguard structure make the whole machine safer and more reliable to use. 9.Optional tire protection chain for longer tire life

Product Specifications

PARAMETERS
project parameter project parameter
capacity 1.7m³

Minimum turning radius

(outside of bucket)

5980mm
Rated load capacity 3000kg Ground clearance  316mm
Dumping height 2500mm Engine model YC6J125-T300
Unloading distance 1035mm Engine power 92kw/2200r/min
wheelbase 2695mm Tire Size 17.5-25
Track width 1820mm Dimensions(length*width*heigth) 7100*2420*2600


Operating weight of the whole machine 11400kg
