Rock drill
The imported drill has the characteristics of super bending resistance, high drilling speed and low loss of drilling tools, etc.
Anchor device
Strong versatility, high strength thimble, high anchoring accuracy and production efficiency, height adjustable bolt warehouse, to meet the different length of bolt storage, can meet the resin bolt or pipe seam bolt.
Boom
Rapid and accurate positioning; Square structure, high strength, good shock absorption performance;
Hydraulic system
Three pump system, clear division of labor, strong anti-interference ability, stable output flow; Direct hydraulic control system is adopted in drilling operation, simplified hydraulic pipeline, convenient for maintenance. It has the functions of anti-jamming, anti-air defense and automatic backsliding, which can effectively improve the drilling efficiency and reduce the loss of drilling tools;
Electrical system
Choose international famous brand electrical components, high reliability, long service life; With grounding fault protection, phase sequence protection, motor overload protection and engine fault alarm and other protection alarm functions.
Carrier
Adopting China IV/III water-cooled engine and static hydraulic transmission system, the vehicle has strong climbing ability. The braking system adopts spring braking and hydraulic release form, which is safe and reliable;
Cab
The cab ceiling can be raised and lowered to meet the driving and operation requirements of different roadways;
Hood
The vehicle hood is using full coverage structure, featuring safe and reliable protection for power, transmission, hydraulic and electrical systems.
Main Technical Data
|
NO.
|
Description
|
Data
|
|
一
|
Basic parameters
|
11500
|
|
1
|
Weight (kg)
|
9550×1600×2000(2700)
|
|
2
|
Dimension (mm)
|
3000×3000-6550×5850
|
|
3
|
Coverage area（width×highness，mm）
|
2.5
|
|
4
|
Turning radius（mm）
|
2350/5350
|
|
二
|
Detailed configuration
|
|
|
1
|
Rock Drill
|
Model
|
HC25
|
HC28
|
YYG3/800
|
|
Brand
|
Montabert
|
LHS
|
|
Hydraulic pressure（bar）
|
110-150
|
130-160
|
140-160
|
|
Impact power（kW）
|
8
|
10
|
8
|
|
Strike frequency (Hz)
|
55-65
|
47-53
|
30-55
|
|
Maximum rotation torque（N·m）
|
401
|
482
|
300
|
|
Rotation speed（r/min）
|
300
|
300
|
220
|
|
Lub.air consumption(L/min)（L/min）
|
300(2bar)
|
300(3bar)
|
100(5bar)（5bar）
|
|
Water consuption（L/min）
|
20-50
|
30-60
|
40
|
|
Hole diameter（mm）
|
32-51
|
28-45
|
|
2
|
Boom
|
Quantity
|
1
|
|
Feed compensate extension（mm）
|
900
|
|
Max. lifting angle（°）
|
+53～-43
|
|
Max. swinging angle（°）
|
±30
|
|
3
|
Anchor device
|
Quantity
|
1
|
|
Bolt length（mm）
|
1500
|
1800
|
2000
|
|
Drill steel length（mm）
|
1770
|
2120
|
2270
|
|
Drill depth（mm）
|
1630
|
1970
|
2120
|
|
Device length（mm）
|
2820
|
3200
|
3350
|
|
Tunnel height（mm）
|
3020
|
3400
|
3550
|
|
Tunnel height with mesh grab manipulator（mm）
|
3220
|
3600
|
3750
|
|
flip angle（°）
|
±180
|
|
4
|
Mesh grab manipulator
|
Mesh weight（kg）
|
≤50
|
|
Mesh size（mm）
|
100×100～130×130
|
|
5
|
Gas conveying device
|
Resin roll diameter（mm）
|
23～25(Standard configuration)
|
|
6
|
Resin bolt
|
Rotation direction of anchor bolt nut
|
counter-clockwise (Standard configuration) / dextrorotation
|
|
7
|
Carrier
|
Tramming speed（km/h）
|
10
|
|
Climbing angle（°）
|
14
|
|
Ground clearance （mm）
|
≥200
|
|
Wheel base（mm）
|
2300
|
|
Engine
|
Manufacturers
|
Yuchai
|
|
Power (kW)
|
55.8
|
|
Emission Standards
|
Turbo, China Ⅳ/III
|
|
drive system
|
Four wheel hydraulic drive
|
|
Fuel tank capacity（L）
|
60
|
|
8
|
Hydraulic system
|
Control Mode
|
Direct acting multi - way valve control
|
|
Motor power (kW)
|
45
|
|
Hydraulic oil tank, volume（L）
|
220
|
|
Filtration（μm）
|
10
|
|
9
|
Air system
|
Displacement（L/min）
|
700
|
|
Air consumption（L/min）
|
300
|
|
10
|
Water system
|
Power（kW）
|
3
|
|
Rated displacement（L/min）
|
52(12 bar)
|
|
Min water inlet pressure（bar）
|
2
|
|
Rated pressure (bar)
|
12
|
|
11
|
Electrical system
|
Manufacturers
|
Siemens/Schneider /Wolong
|
|
Total installed power（kW）
|
60
|
|
Voltage （V）/ Frequency（Hz）
|
380/50
|
|
Cable length （m）
|
80m/100m
|
|
Starting method
|
Star/delta
|
|
Leakage Protection
|
Yes
|
|
Overload protection for electric motors
|
Yes
|
|
Short circuit protection
|
Yes
|

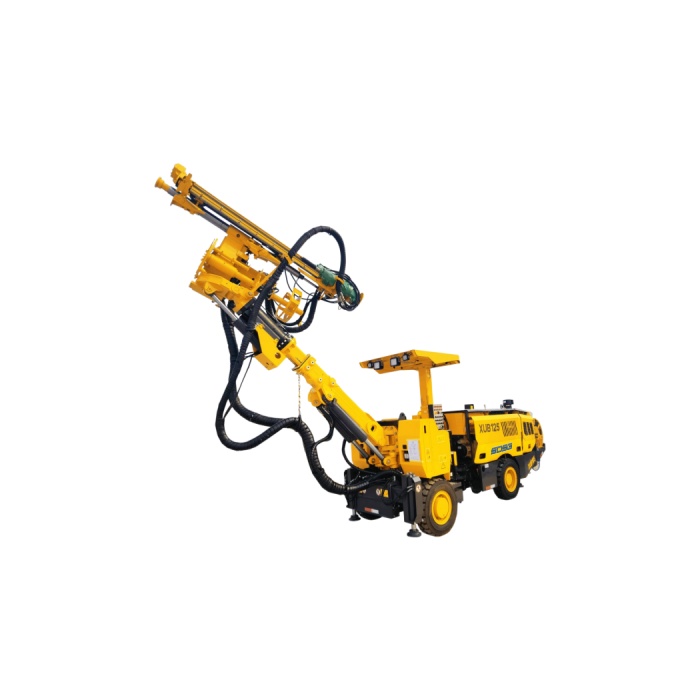

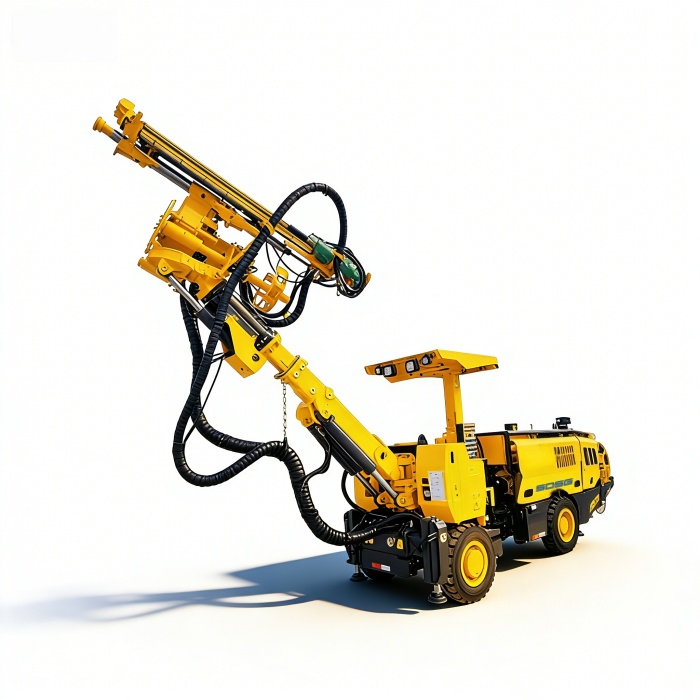

XUB125 [CYTM41/2 (S)] adopts a hydraulic direct control+auxiliary electronic control system, and the chassis adopts tire type four-wheel drive, static hydraulic transmission, and a National IV/III water-cooled engine. The maximum climbing ability of the entire vehicle can reach 17 °; The equipment adopts an imported rock drill and a three pump hydraulic control system, with clear division of labor, strong anti-interference ability, and stable output flow; The fully hydraulic anti jamming drill system has high drilling efficiency, low drilling tool loss, and is equipped with a precise positioning telescopic drill arm and a three-position anchor rod head; The cage under the vehicle can be disassembled into up to 5 sections, especially suitable for narrow and complex underground mining tunnels.
