Rated load: /
Operating weight: 10t
Rated power: 55.8KW

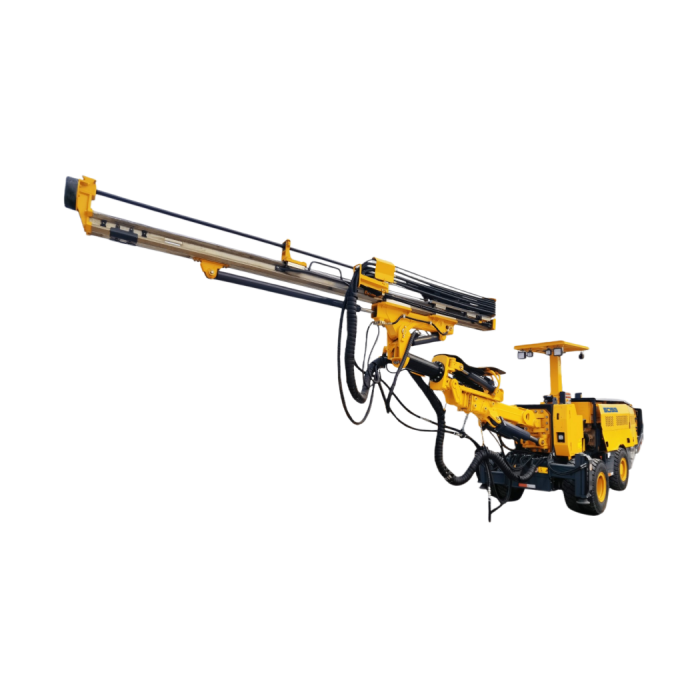

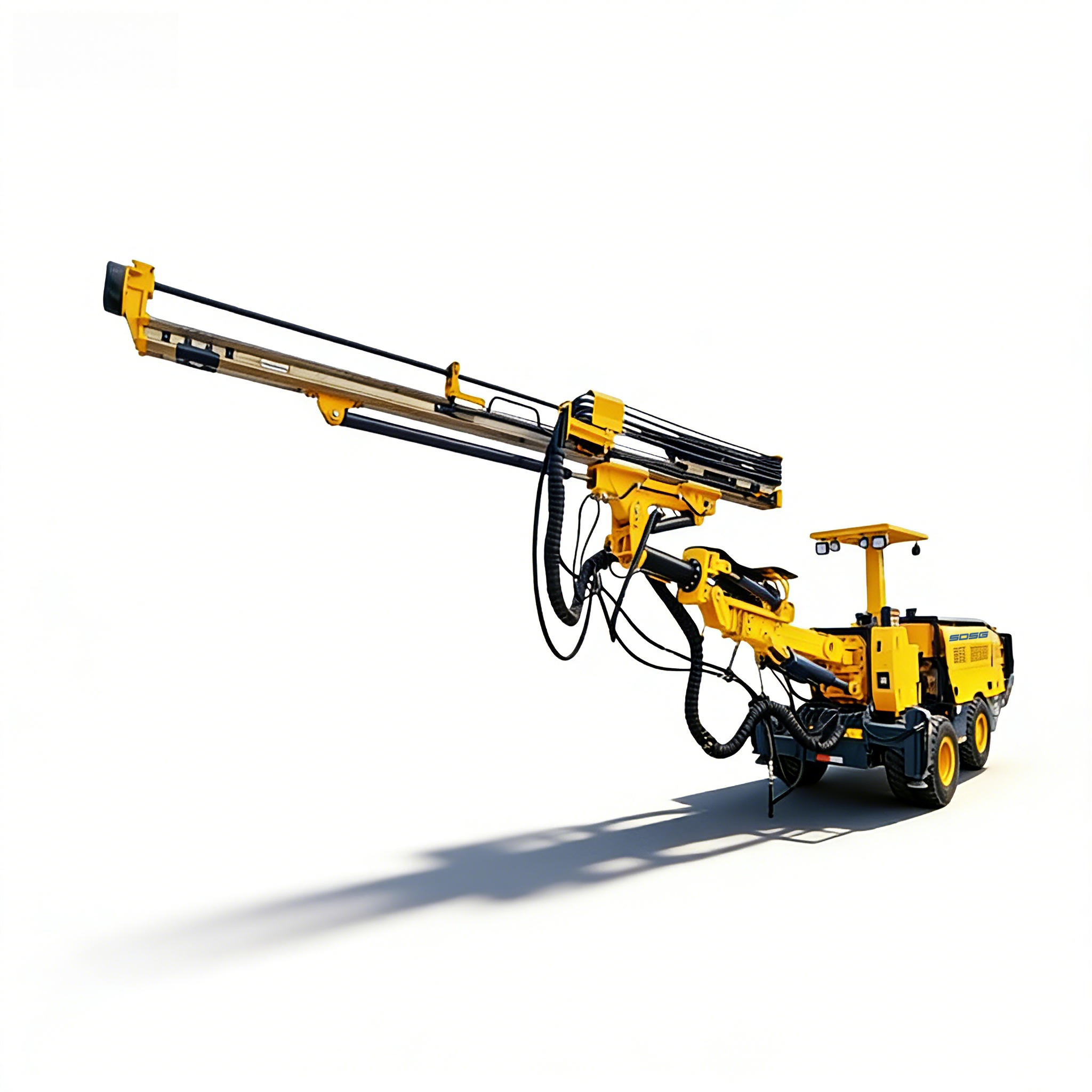

XUD125 is mainly applicable to tunneling construction of various underground tunnels and culverts, such as metal mine, hydropower and so on. It is also applicable to drilling blasting holes and rock bolt holes for narrow vein and tailings mining, small roadway and so on. The equipment adopts hydraulic drilling system, advanced system, fast drilling speed, high working efficiency; The machine is compact, flexible and convenient to operate in a narrow space. The maximum operating area is 24m2.
Rock drill
Well-known brand drill has the characteristics of super bending resistance, high drilling speed and low loss of drilling tools, etc.
Feed
Light aluminum beam, high efficiency bending, torsion and fatigue resistance, long service life. Unique single-layer arrangement hose coil, with reliable pipe clamp structure, good hose tensioning performance, effectively improve hose life, reduce maintenance strength;
Boom
Full parallel drill arm, rapid and accurate positioning; Square structure, high strength, good shock absorption performance;
Hydraulic system
Three pump system,clear division of labor,strong anti-interference ability,stable output flow;Direct hydraulic control system is adopted in drilling operation,simplified hydraulic pipeline,convenient for maintenance.It has the functions of anti-jamming, anti-air defense and automatic backsliding, which can effectively improve the drilling efficiency and reduce the loss of drilling tools;
Electrical system
Choose Schneider, Siemens and other international famous brand electrical components, high reliability, long service life; With grounding fault protection, phase sequence protection, motor overload protection and engine fault alarm and other protection alarm functions.
Power train
Chinese StageⅣ engine,hydrostatic transmission system,strong climbing ability,SAHR emergency and parking brakes,safe and reliable.
Cab
The cab ceiling can be raised and lowered to meet the driving and operation requirements of different roadways;
Hood
The vehicle hood is using full coverage structure,featuring safe and reliable protection for power,transmission,hydraulic and electrical systems.
Main Technical Data
NO.
Description
Data
Ⅰ
Basic parameters
1
Weight (kg)
10000
2
Dimension (mm)
10700×1300×2710(2010)
3
Coverage area（width×highness，mm）
5025×5000
4
Turning radius（mm）
2504/4463
5
Maximum coverage area（㎡）
24
Ⅱ
Detailed configuration
1
Rock Drill
Model × Quantity
HC109×1
YYG18U×1
Brand
Montabert
Epiroc
Hydraulic pressure（bar）
230
230
Impact power（kW）
18.8
18
Maximum strike pressure（bar）
120-135
215
Maximum strike frequency (Hz)
38-49
57
Energy per blow（J）
296-350
300
Maximum rotation pressure（bar）
140
140
Maximum rotation torque（N·m）
730
1050
Rotation speed（r/min）
176
220
Flushing pressure（bar）
15-25
≤25
Weight （kg）
142
180
2
Boom
Quantity
1
Control Mode
Front and rear triangle direct positioning
Coverage area（㎡）
24
Boom extension（mm）
1500
Max. lifting angle（°）
-1.209302326
Max. swinging angle（°）
±30
3
Feed
Total length（mm）
4740/5400
Feed force（kN）
15
Drill steel length（mm）
3090/3700
Hole depth（mm）
2830/3440
Feed roll-over（°）
±180
Max. swinging angle（°）
-3~90
4
Carrier
Gradeability （°）
20
Engine
Manufacturers
Yuchai
Power (kW)
55.8
Emission Standards
Turbo, China Ⅳ
Four wheel drive
Yes
Tramming speed（km/h）
≤10
Ground clearance （mm）
≥220
Articulated steering
Yes
Steering angle（°）
±40
Front and rear wheel wheelbase (mm)
2300
5
Hydraulic system
Control Mode
Direct acting multi - way valve control
Motor power (kW) × quantity
51.75×1
Hydraulic oil tank, volume（L）
220
Filtration （μm）
10
6
Air system
Air pressure（bar）
0.3（Rated）、0.8（Max.）
Air consumption (L/min)
320/700(Optional)
Oil supply（ml/min）
1.4~1.75
7
Water system
Power（kW）
3
Capacity（L/min）
52（12bar）
Min water inlet pressure（bar）
2
Rated pressure (bar)
12
8
Electrical system
Manufacturers
Siemens/Schneider/CHNT
Total installed power（kW）
60
Voltage （V）/ Frequency（Hz）
380/50
Cable length （m）
80
Starting method
Star/delta
Leakage Protection
Yes
Overload protection for electric motors
Yes
Short circuit protection
Yes
