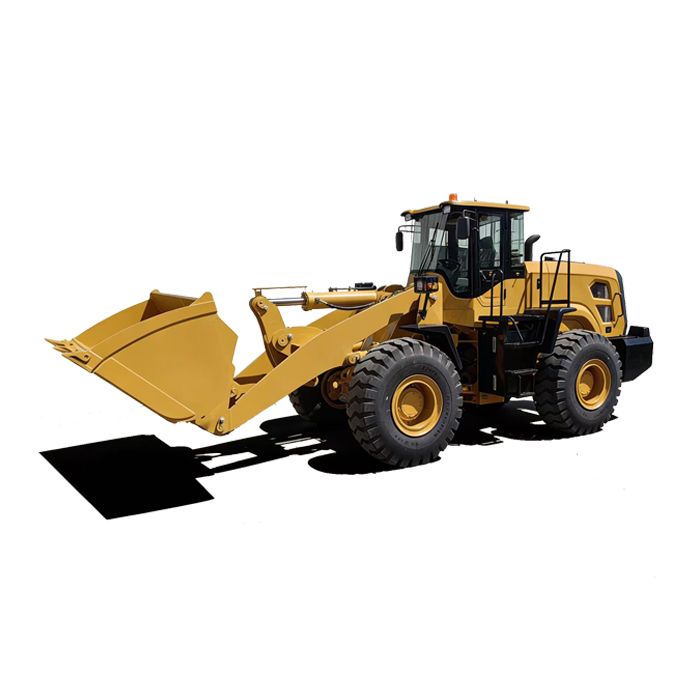

Rated load: 3m³
Operating weight: 16500kg
Rated power: 162kw
|
Item |
Unit |
Parameter |
|
Loader lifting capacity |
KG |
5000 |
|
Operating weight |
KG |
16500 |
|
Rated bucket capacity |
m³ |
3 |
|
Max. tractive force |
KN |
167 |
|
Max. breakout force |
KN |
≥177 |
|
Max. grade ability |
° |
30 |
|
Max. dump height |
mm |
3100 |
|
Max. dump reach |
mm |
1250 |
|
Overall dimension(L×W×H) |
mm |
8108×2950×3450 |
|
Min. turning radius |
mm |
6640 |
|
Engine Model |
/ |
Weichai |
|
Engine Type |
/ |
lnline, water cooled, four stroke |
|
Cylinder-Inner diameter*stroke |
mm |
6-126×130 |
|
Rated power |
kw |
162 |
|
Max. torque |
N.m |
980 |
|
Min fuel consumption |
g/kw.h |
≤213 |
|
Torque converter |
/ |
YJSW315 |
|
Gearbox mode |
/ |
planetary |
|
Gears |
/ |
2 forward and 1 reverse gears |
|
Max. speed |
km/h |
38 |
|
Wheel base |
mm |
3250 |
|
Wheel tread |
mm |
2250 |
|
Ground clearance |
mm |
450 |
|
System working pressure |
Mpa |
18 |
|
Boom lifting time |
s |
5.95±0.2 |
|
Total time |
s |
10.95±0.5 |
|
Fuel tank capacity |
L |
249 |
|
Self-levelling bucket |
/ |
yes |
|

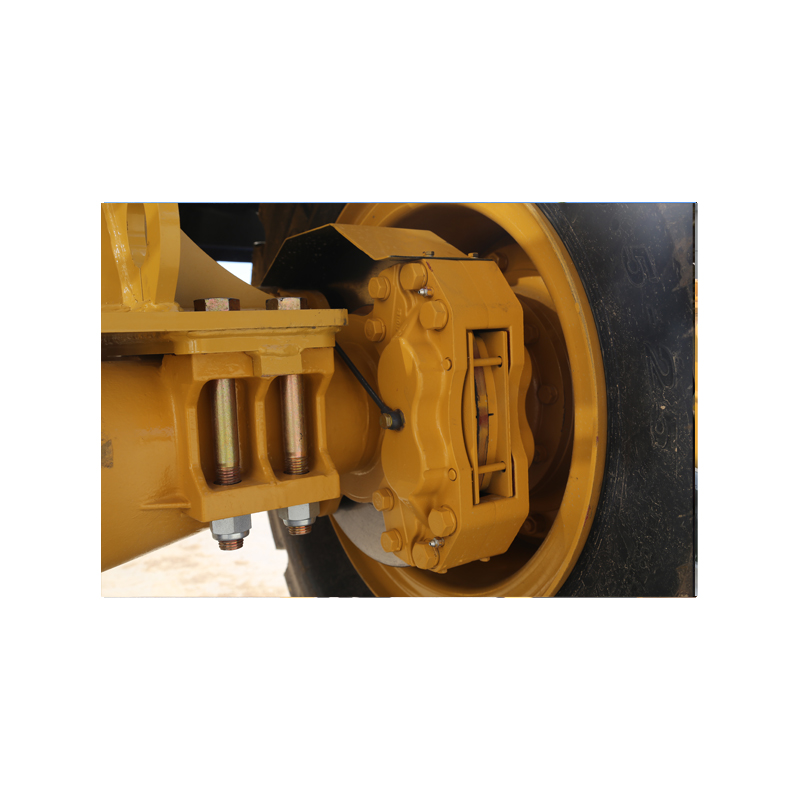

Service brake |
/ |
Air assist disc brake on 4 wheels |
|
Parking brake |
/ |
Manual brake |
|
Tyre model |
/ |
23.5-25 |
|
Front tyre pressure |
Mpa |
0.4 |
|
Rear tyre pressure |
Mpa |
0.35 |
