| Characteristics | Size | Engine | Tyre | ||||||||
| Item | Unit | Parameter | Item | Unit | Parameter | Item | Unit | Parameter | Item | Unit | Parameter |

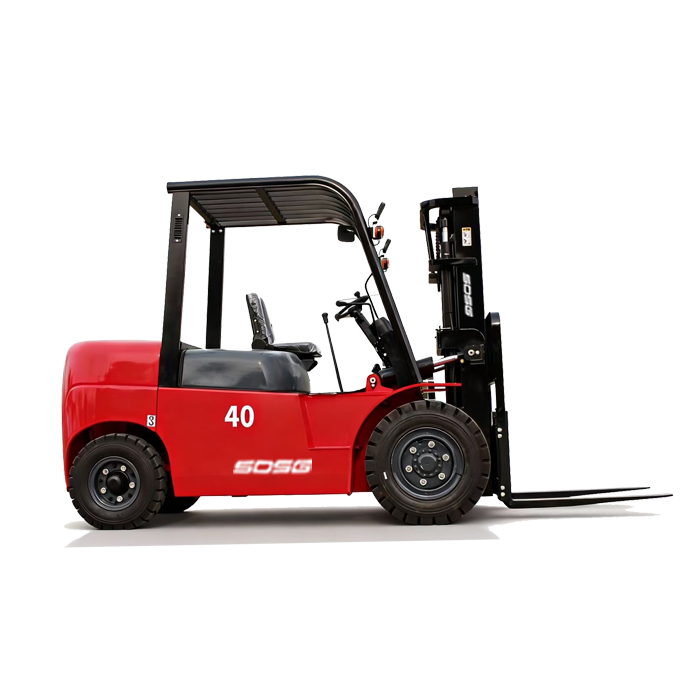

| Model | / | CPC40-H | front overhang L2 | mm | 560 | Rated output/r.p.m | kW | 48/2300 | tyre type | / | pneumatic tyre |
| driving mode | / | seated | tilt of the mast, front/rear α/β | ° | 6/12 | Rated torque/r.p.m | N·m | 230/1600 | wheels number(front/rear) | / | 2/2 |
| rated capacity | kg | 4000 | Mast Lowered height H1 | mm | 2275 | No. of Cylinder | / | 4 | front track N3 | mm | 1180 |
| load center distance | mm | 500 | Mast extended height(with backrest) H3 | mm | 150 | Bore×Stroke | mm | 98×105 | rear track N2 | mm | 1190 |
| power mode | / | Diesel oil | overall maximum lift height H | mm | 3000 | Displacement | cc | 2540 | tyre(front) | / | 8.25-15-14PR |
| wheelbase | mm | 2100 | height, mast extended H2 | / | Weight | tyre(rear) | / | 700-12-14PR | |||
| Performance | overhead guard height H4 | mm | 2350 | Item | Unit | Parameter | |||||
| Item | Unit | Parameter | Min. ground clearance (Bottom of mast) N5 | mm | 175 | Self weight | kg | 6290 | |||
| travel speed, unladen | km/h | 18.5 | fork size(L×W×T) TWL4 | mm | 501501070 | axle load:unloaded, front/rear | kg | 2772/3518 | |||
| lifting speed, laden | mm/s | 420 | truck body length(fork excluded) L＇ | mm | 3240 | axle load:loaded, front/rear | kg | 8675/1615 | |||
| lowering speed, laden | mm/s | 450 | truck body width N1 | mm | 1480 | battery voltage /nominal capacity | V/Ah | 24/80 | |||
| maximum negotiable gradient, laden | % | 20 | turning radius R | mm | 3050 | battery weight | / | / | |||
