Item
|
Unit
|
Parameter
|
|

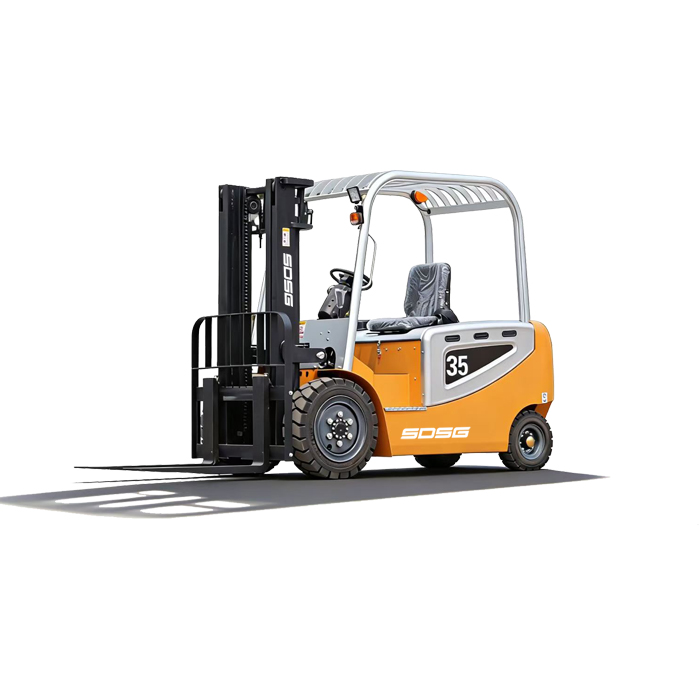

Model
|
-
|
CPD30-D
|
|
Driving Mode
|
-
|
Seated
|
|
Rated Capacity (Q)
|
kg
|
3500
|
|
Load Center Distance (C)
|
mm
|
500
|
|
Power Mode
|
-
|
Lead-Acid Battery
|
|
Wheelbase (L1)
|
mm
|
1850
|
|
Tyre Type
|
-
|
Pneumatic Tyre
|
|
Wheels Number (Front/Rear)
|
-
|
2/2
|
|
Front Track (W3)
|
mm
|
1000
|
|
Rear Track (W2)
|
mm
|
994
|
|
Tyre (Front)
|
-
|
28*9-15
|
|
Tyre (Rear)
|
-
|
18*7-8
|
|
Travel Speed, Laden/Unladen
|
km/h
|
10/10
|
|
Lifting Speed, Laden/Unladen
|
mm/s
|
200/300
|
|
Lowering Speed, Laden/Unladen
|
mm/s
|
450
|
|
Maximum Negotiable Gradient, Laden/Unladen
|
%
|
12/15
|
|
Service Mass (With Battery)
|
kg
|
4300
|
|

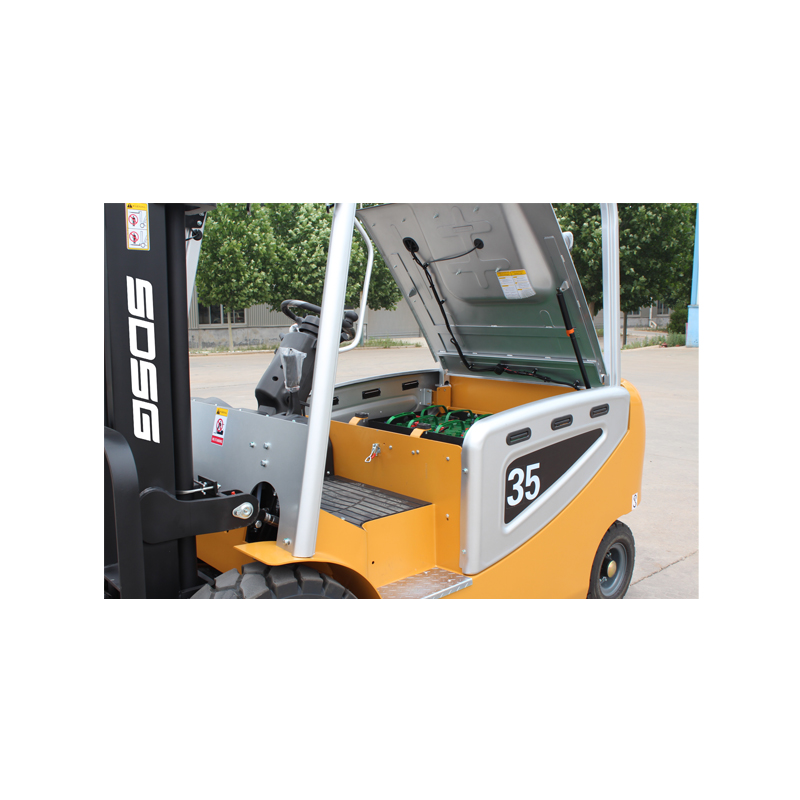

Battery Voltage / Nominal Capacity
|
V/Ah
|
72V/260Ah
|
|
Battery Weight
|
kg
|
430
|
|
Drive Motor Controlling Mode
|
-
|
MOSFET/AC
|
|
Lifting Motor Controlling Mode
|
-
|
MOSFET/AC
|
|
Service Brake / Parking Brake
|
-
|
Hydraulic/Mechanical
|
|
Front Overhang (L2)
|
mm
|
467
|
|
Tilt of the Mast, Front/Rear (α/β)
|
°
|
5/10
|
|
Height, Mast Retraction (H1)
|
mm
|
2057
|
|
Free Lift Height (H3)
|
mm
|
120
|
|
Overall Maximum Lift Height (H)
|
mm
|
3000
|
|
Height, Mast Extended (H2)
|
mm
|
4200
|
|

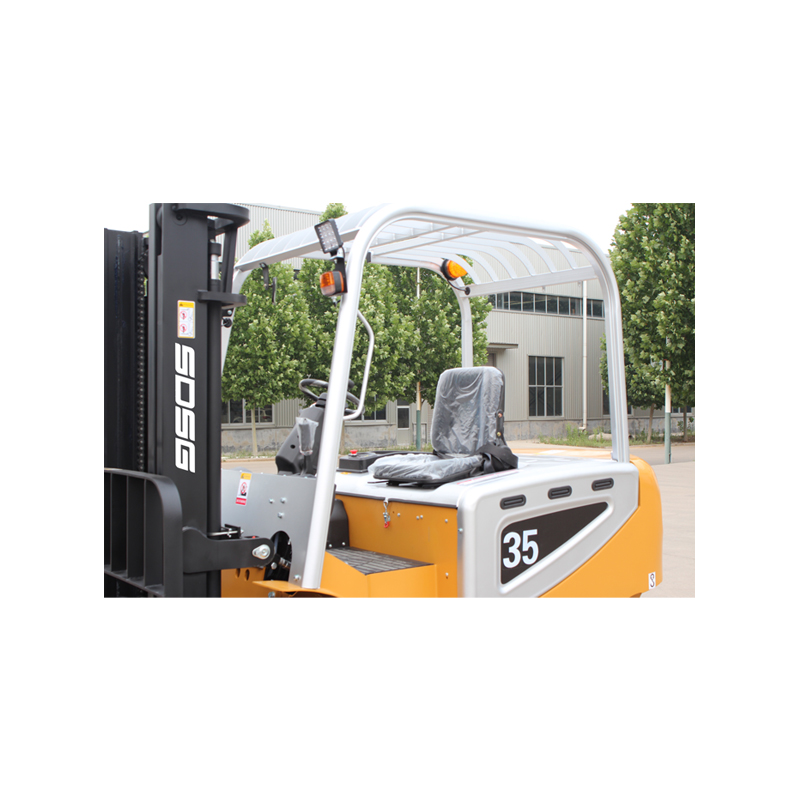

Overhead Guard Height (H4)
|
mm
|
2200
|
|
Lateral Fork Adjustment (Outside of Forks) Max/Min (W5)
|
mm
|
1100/244
|
|
Fork Size (L×W×T) (Thickness×Width×Length, TWL4)
|
mm
|
45*122*1070
|
|
Truck Body Length (Fork Excluded) (L')
|
mm
|
2700
|
|
Truck Body Width (W1)
|
mm
|
1225
|
|
Turning Radius (R)
|
mm
|
2350
|
|
Ground Clearance Under Mast (H5)
|
mm
|
82
|
|
Ground Clearance at Center of Wheelbase (Laden) (H6)
|
mm
|
145
|
|
Width of Aisle Right-Angle Stacking (Pallet 1000×1200mm, 1000 Along Fork, Clearance 200mm) (Ast)
|
mm
|
4100
|
|
Width of Aisle Right-Angle Stacking (Pallet 800×1200mm, 1200 Along Fork, Clearance 200mm) (Ast)
|
mm
|
4300
|
