Rated load: 4000kg
Operating weight: /
Rated power: 6660kg
| Item | Unit | Parameter |
| Driving mode | / | seated |
| Rated capacity | kg | 4000 |
| Load center distance | mm | 500 |
| Power mode | / | lead-acid battery |
| Wheelbase | mm | 2040 |
| Travel speed, laden/unladen | km/h | 12/13 |
| Lifting speed, laden/unladen | mm/s | 280/300 |
| Lowering speed, laden/unladen | mm/s | 450 |
| Maximum negotiable gradient, laden/unladen | % | 15/20 |
| Service mass (with battery) | kg | 6660 |
| Axle load: unloaded, front/rear | kg | 3230/3430 |
| Axle load: loaded, front/rear | kg | 9380/1270 |
| Battery voltage / nominal capacity | V/Ah | 80V/300Ah |
| Battery weight | kg | 860 |
| Drive motor power - 60 minutes | kW | 18AC |
| Lift motor power - 15 minutes | kW | 16.5AC |
| Drive motor controlling mode | / | MOSFET/AC |
| Lifting motor controlling mode | / | MOSFET/AC |
| Service brake / parking brake | / | Hydraulic / Mechanical |
| Tyre type | / | solid tyre |
| Wheels number (front/rear) | / | 2/2 |
| Front track | mm | 1310 |
| Rear track | mm | 1100 |
| Tyre (front) | / | 250-15 |
| Tyre (rear) | / | 21×8-9 |
| Front overhang | mm | 573 |
| Tilt of the mast, front/rear | ° | 6/12 |
| Height, mast retraction | mm | 2340 |
| Free lift height | mm | 120 |
| Overall maximum lift height | mm | 3000 |
| Height, mast extended (with backrest / without backrest) | mm | 4220 / 3790 |

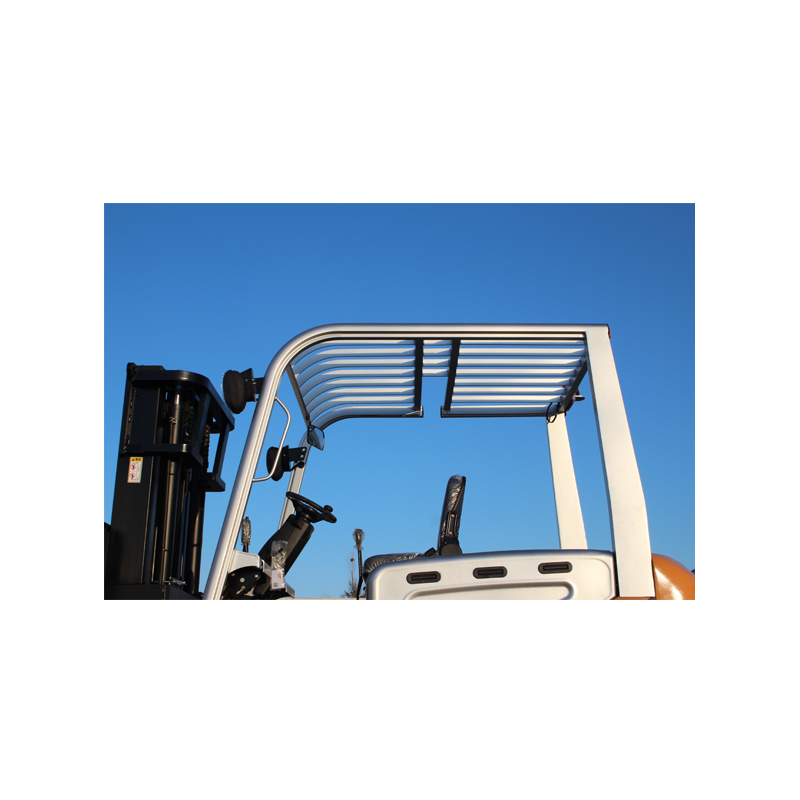

| Overhead guard height | mm | 2350 |
| Lateral fork adjustment (outside of forks) Max/Min | mm | 1240 / 300 |
| Fork size (L×W×T) | mm | 50×145×1070 |
| Truck body length (fork excluded) | mm | 2990 |
| Truck body width | mm | 1585 |
| Turning radius | mm | 2700 |
| Ground clearance under mast | mm | 160 |
| Ground clearance at center of wheelbase (laden) | mm | 160 |
| Width of aisle right-angle stacking (pallet 1000×1200 mm, 1000 along fork, clearance 200 mm) | mm | 4543 |
| Width of aisle right-angle stacking (pallet 1200×1200 mm, 1200 along fork, clearance 200 mm) | mm | 4673 |
